Wifi Home automation Diy kit By Manmohan Pal
Wifi Home Automation Kit
Hi, This is Manmohan Pal, I am glad to present a DIY kit for Home Automation Project, I Designed it in such a way that it can be used to operate multiple devices, we can make a number of gadgets using the same PCB and components, PCB is high Quality and designed in such a way that it can be use in more that 50 projects,
Highlights of PCB
1) 4ch Relay driver Circuit ON board
2) Can drive 12 volt as well as 5 Volt Relays,
3) PCB have facility to install Moter Driver IC ,
4) P10 Connecter On board, for large Matrix display
5) PCB have Facility to install RFID on board,
6) Pushbuttons and IR reciever are placed to entertain multiple inputs,
7) Facility to install Buzzer On board to make timer or alarm or alert beeps,
9) PCB is designed to serve Ver 2 and Ver 3 both the NodeMCUs.
10) PCB can be used for IOT projects as well as Local Wifi Home Automations.

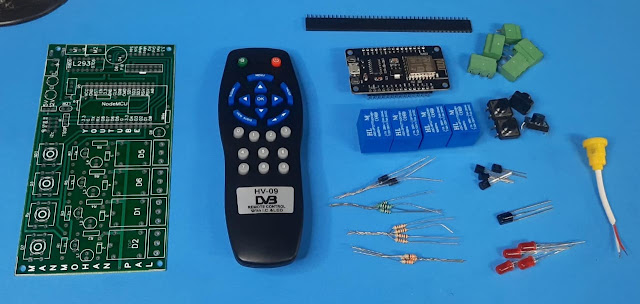

1) Double Sided High Quality PCB
2) NodeMCU (Preprogrammed as per your Needs)
3) I R remote Transmitter
4) TSOP 1738 (IR Receiver)
5) Resistors 100 Ohm (4)
6) Resistors 330 Ohm (4)
7) Resistors 10 K (4)
8) Push Buttons (4)
9) Transistor BC 547 NPN
10) 1N4007 Diode
11) PCB wire Connector 3 Pin (4)
12) 5 Volt Relay (4)
13) PCB Female Header
14) PCB wire Connector 2 Pin (Power Supply)
15) C Type Power Connecter
Download Code and Circuit Diagram
